Parts of a Crane: Key Components and How They Work

Cranes are essential machines in modern construction, infrastructure, logistics, and heavy industry. Understanding the parts of a crane helps operators, project managers, and equipment planners ensure safe lifting, proper load handling, and efficient project execution. Each crane component plays a specific role in stability, lifting performance, and operational control.

Whether used in high-rise construction, material handling, or heavy lifting operations, cranes rely on a combination of structural, mechanical, and hydraulic systems working together. Knowing how these parts function not only improves operational safety but also helps businesses choose the right equipment for different project conditions.

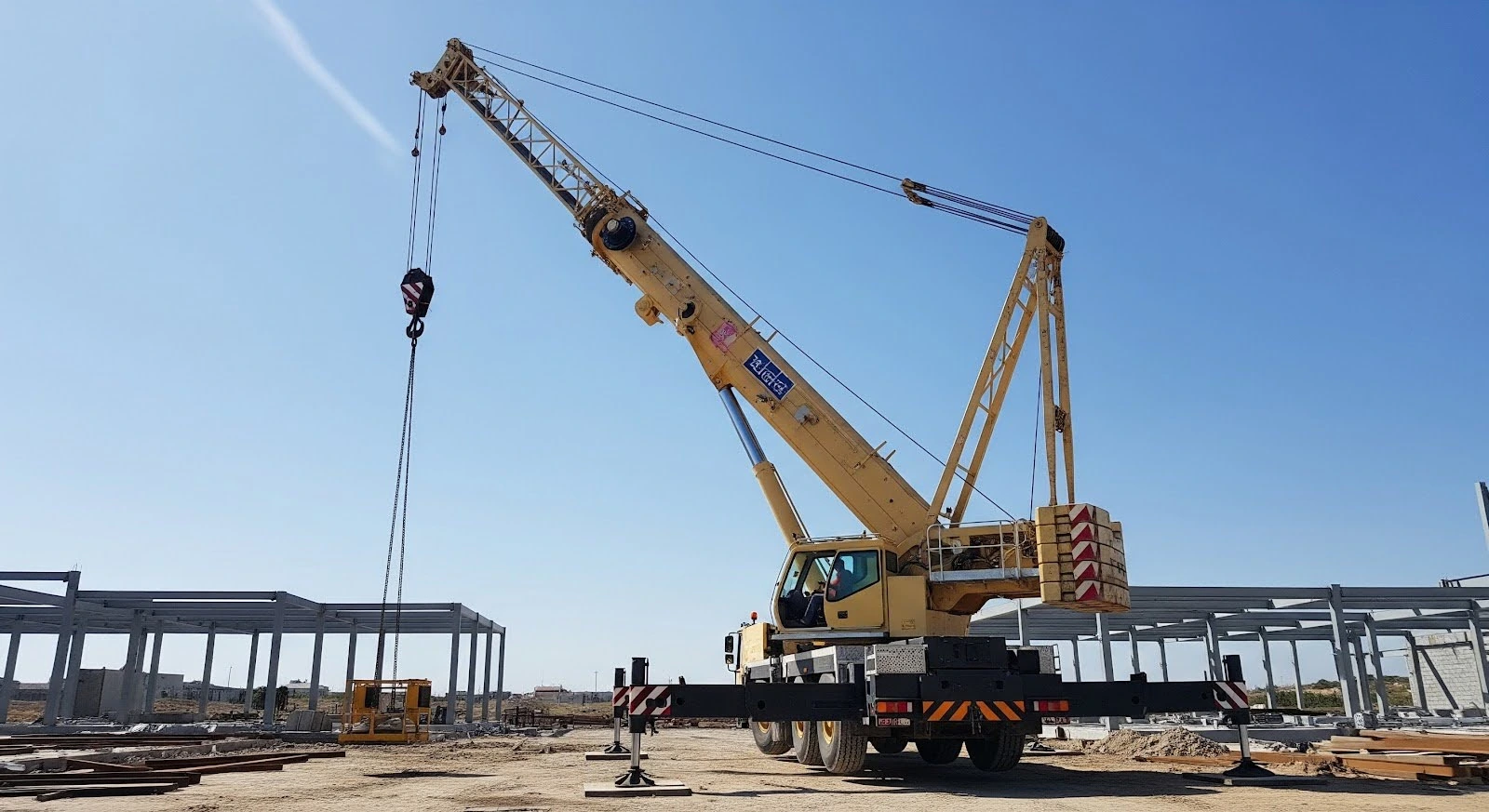

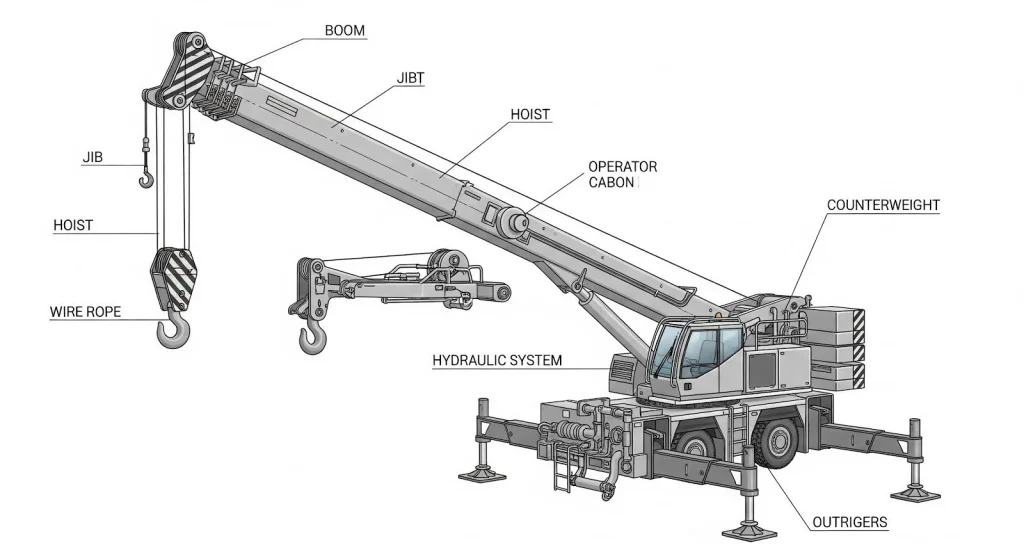

Main Structural Parts of a Crane

The structural framework forms the backbone of any crane. These components support the load and maintain overall balance during lifting operations.

1. Boom

   The boom is the long arm of the crane responsible for lifting and moving loads vertically and horizontally. Depending on crane type, the boom may be telescopic, lattice, or articulated. The boom determines lifting height, reach, and load positioning accuracy.

2. Jib

   A jib is an extension attached to the boom, allowing additional reach and improved lifting flexibility. Jibs are commonly used when precise load placement is required, especially in tight construction environments.

3. Counterweight

   The counterweight balances the crane during lifting operations. Without it, the crane could tip forward when handling heavy loads. Counterweights are carefully calculated based on lifting capacity and crane configuration.

4. Mast or Tower

   In tower cranes, the mast (or tower) provides vertical height and structural stability. It supports the slewing unit and boom assembly, enabling cranes to operate safely at great heights.

   For a deeper understanding of how lifting equipment is used across different job sites, many contractors explore practical insights on heavy lifting applications in modern construction equipment usage guides.

      Also read : Understanding Different Types of Cranes and Their Applications

Mechanical and Lifting Components

These parts are responsible for the actual lifting, lowering, and load control processes.

1. Hoist System

   The hoist includes the motor, drum, wire rope, and hook. It controls vertical lifting and lowering of loads. Proper hoist maintenance is critical for safe operations and preventing equipment failure.

2. Wire Rope and Hook

   The wire rope carries the load, while the hook secures it. Hooks often include safety latches to prevent accidental load release during lifting.

3. Sheaves and Drums

   Sheaves guide the wire rope along the boom, reducing friction and ensuring smooth lifting. The drum winds and unwinds the rope during hoisting operations.

4. Load Block

   The load block contains multiple pulleys that increase lifting capacity and distribute load weight efficiently. It also improves mechanical advantage during heavy lifting.

Hydraulic and Power Components

Hydraulic systems allow cranes to move smoothly and lift heavy loads efficiently.

1. Hydraulic Cylinders

   Hydraulic cylinders control boom extension, lifting angle, and sometimes crane rotation. These cylinders convert hydraulic pressure into mechanical force, enabling precise movement.

2. Pump and Hydraulic Fluid

   The hydraulic pump generates pressure, while hydraulic fluid transfers energy throughout the crane system. Proper fluid maintenance prevents overheating and mechanical wear.

3. Engine or Electric Motor

   Cranes may run on diesel engines or electric motors, depending on their application. Mobile cranes typically use diesel engines, while overhead cranes often rely on electric power systems.

      Also read : Types of Construction Lifts and Their Uses in Modern Projects

Control and Safety Components

Safety and operational control are essential in crane operations.

1. Operator Cabin

   The cabin houses crane controls, load monitoring systems, and safety indicators. Modern cranes include digital displays, load moment indicators, and real-time diagnostics to enhance operator awareness.

2. Slewing Unit

   The slewing mechanism allows the crane to rotate horizontally. This enables precise load positioning and improves operational flexibility on construction sites.

3. Load Moment Indicator (LMI)

   The LMI monitors load weight and lifting angle to prevent overloading. It automatically warns operators when approaching unsafe lifting conditions.

4. Outriggers

   Outriggers extend from mobile cranes to stabilize the machine during lifting. They distribute weight evenly and prevent tipping, especially when lifting heavy loads.

Additional Supporting Crane Components

Other supporting parts enhance crane performance and adaptability across different applications.

• Turntable: Allows crane rotation between upper and lower structure.
• Carrier or Undercarriage: Supports crane mobility in mobile cranes.
• Telescopic Sections: Provide adjustable boom length for flexible reach.
• Swing Motor: Controls rotational movement of the crane.
• Braking System: Ensures controlled movement and load stability.

These components work together to ensure cranes operate safely under different lifting conditions, from industrial material handling to large-scale infrastructure projects.

      Also read : Types of Material Handling Equipment Used in Industrial Operations

Why Understanding Crane Parts Matters

Knowing the parts of a crane helps improve safety, efficiency, and equipment lifespan. Proper knowledge allows operators and project planners to:

• Select the right crane for specific lifting tasks
• Prevent overloading and structural damage
• Improve lifting precision and productivity
• Reduce downtime through proper maintenance
• Enhance job site safety

Many construction professionals compare crane configurations and lifting equipment performance before choosing machinery, similar to insights shared in equipment comparison and lifting technology guides used across modern projects.

For technical reference on crane mechanics and lifting principles, engineering resources such as crane system overviews and industrial lifting technology research provide valuable technical insights.
